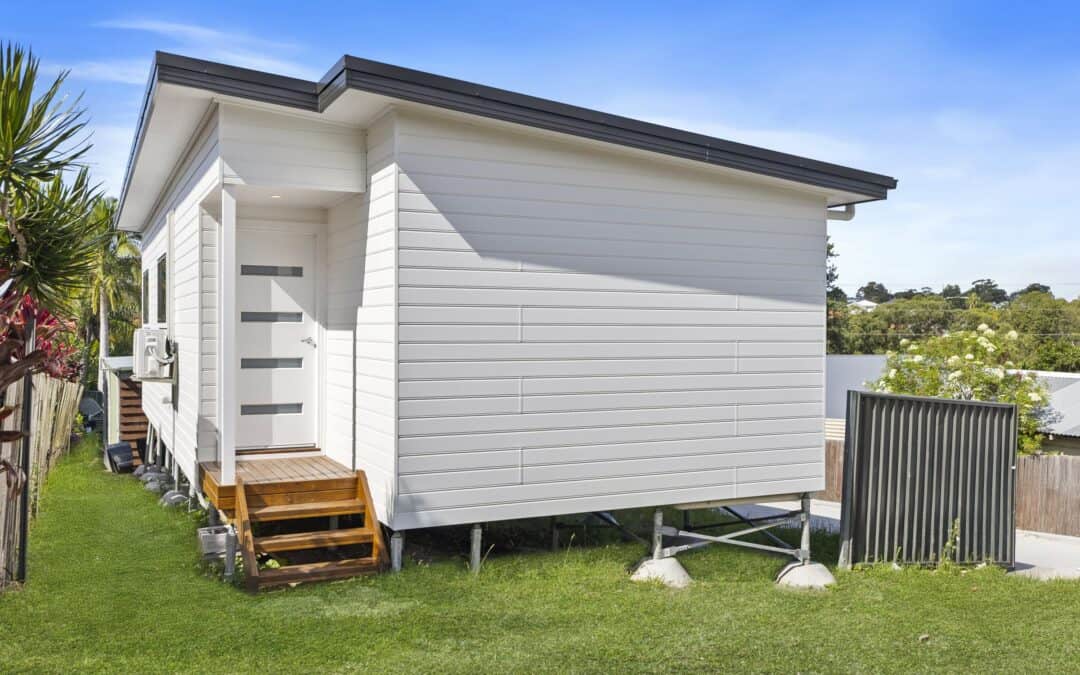

Granny Flat Built on Class P Soil in Lake Macquarie
Modified Pavilion Granny Flat Built in Highfields, Lake Macquarie
Lisa’s Highfields property came with a complication that most builds never encounter: the ground itself. A geotechnical investigation revealed moist, clay-like subsoil conditions and an unstable site classification that would need careful engineering before a single wall could go up. For some, that kind of discovery is a reason to pause. For Lisa, it was simply a problem to solve. She had a clear idea of what she wanted in her backyard, and Aplus had the experience to make it happen. What followed was one of those builds where the most important work happens well below ground level.
The Right Design
Lisa chose The Pavilion, a two-bedroom design from the Aplus two-bedroom granny flat range that is particularly well suited to narrower blocks. The Pavilion delivers two bedrooms, an open-plan kitchen, living and dining area, and a bathroom and laundry within a smart, proportioned footprint. For this build, the design was modified to include a skillion roof with raked ceilings in the living area. A skillion is a single-slope roof that gives the flat a clean, contemporary profile from the outside. Inside, the raked ceilings follow the roofline, creating height and a sense of openness in the living space that a flat ceiling cannot match. It is a modification that makes a genuine difference to how the flat feels to live in.
Engineering the Site
The Highfields site was assessed as Class P under the Australian standard for residential footings. Class P is the classification given to “problem” soils: ground that is expansive, unstable, or likely to shift in ways that a standard footing design cannot safely accommodate. The geotechnical report identified moist, clay-like soil conditions across the site, which meant conventional footings were off the table. An engineered solution was needed before anything could be built above ground.
The answer was a screw pier foundation system. Screw piers are hollow steel piles that are mechanically wound into the ground, cutting past the unstable upper layers to reach stable soil at depth. For this site, 20 screw piers were installed to 4.6 metres, and a further 13 piers were driven to 5.6 metres deep, with concrete used to lock each pier firmly in place. Those depths give a real sense of the challenge involved. Once installed, the piers provide a solid, engineered platform for the steel frame and roof truss structure above, ensuring the flat performs reliably regardless of how the clay soil moves over time. The steel frame and truss construction above the piers is well matched to this kind of foundation: strong, lightweight, and suited to sites where ground conditions demand precision.
Lisa kept the inclusions standard throughout, which made good sense given the engineering complexity the site had already demanded. The focus was on getting the build right from the ground up, and the standard specification delivers a comfortable, well-finished result without unnecessary complication.
Approval and Build
The project was approved through a Complying Development Certificate (CDC), the fast-track pathway that runs through a private certifier rather than full council assessment. Despite the engineering complexity below ground, the build met all the requirements for the streamlined CDC process. Construction proceeded methodically, with the screw pier foundation work completed first before the steel frame and truss structure was erected above, and the finished flat handed over to Lisa to move into.
The Result – Highfields Lake Macquarie Granny Flat Gallery
Lisa now has a self-contained two-bedroom home in her backyard, engineered from the ground up to handle the specific conditions of the Highfields site. The skillion roofline gives the flat a distinctive, modern profile, and the raked ceilings in the living area bring a feeling of height and space that elevates the whole interior. She is owner-occupying, so the flat is exactly what it was always meant to be: a proper home, built properly, on a site that demanded more than most.
Granny Flats in Highfields and Lake Macquarie
Highfields is a residential suburb within the Lake Macquarie region, one of the most active areas for granny flat construction in NSW. The Lake Macquarie LGA covers a wide range of block types and site conditions, and Aplus has the experience to handle everything from straightforward builds to complex engineering challenges like this one. Other completed Lake Macquarie projects include this two-bedroom, two-bathroom build in the region. If you are considering a granny flat in Highfields or anywhere across the Lake Macquarie area, Aplus can assess your site and manage the full process from design through to handover.
